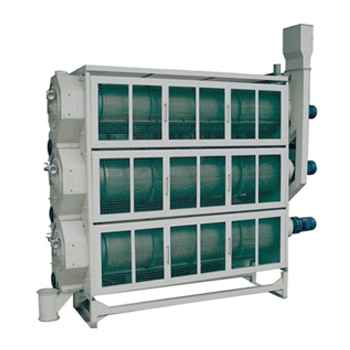

CDFJ Rice Length Grader
-
Range of Application:
The CDFJ Length Grader is widely used for the separation of broken rice from full rice and long rice.
Product features:
1. Follow the head rice and broken rice length difference's principle to separate the head rice and broken rice.
2. The machine is effective in thoroughly grading both head rice and broken rice, with no broken rice contained in the head rice and no head rice contained in the broken rice.
3. Easily exchangeable screen tube, easily operated.
4. Customized screen tube combination can meet different process flow requirements.
Main technical parameters:
| Type |
Capacity
(Kg/h) |
Power (Kw) |
Packing Size
(L*W*H)mm |
Gross Weight
(KG) |
Separation Result (%) |
| Percentage of head rice contained in broken rice |
Percentage of broken rice contained in head rice |
| CDFJ50×1 |
800 |
0.75 |
2780*800*980 |
800 |
≤2 |
≤5 |
| CDFJ50×2 |
1200 |
0.75*2 |
3160*800*1730 |
1000 |
≤2 |
≤5 |
| CDFJ50×2B |
1500 |
0.75*2 |
2850*800*1730 |
980 |
≤2 |
≤5 |
| CDFJ50×3 |
2000 |
0.75*3 |
3160*800*2530 |
1050 |
≤2 |
≤5 |
| CDFJ50×3B |
2500 |
0.75*3 |
2850*800*2530 |
900 |
≤2 |
≤5 |
| CDFJ50×4 |
3500 |
0.75*4 |
3160*800*3180 |
1080 |
≤2 |
≤5 |
| CDFJ60/60 |
1500 |
0.75*2 |
3160*880*1880 |
890 |
≤2 |
≤5 |
| CDFJ71×3 |
4400-5500 |
1.5*3 |
3380*1180*2830 |
1130 |
≤2 |
≤5 |
Notes:
1. percentage of broken rice in unpolished rice is≤30% and chaff in the processed rice is≤0.015%;
2. The broken rice is regarded as head rice if it is at least 2/3 the length of head rice.
-
